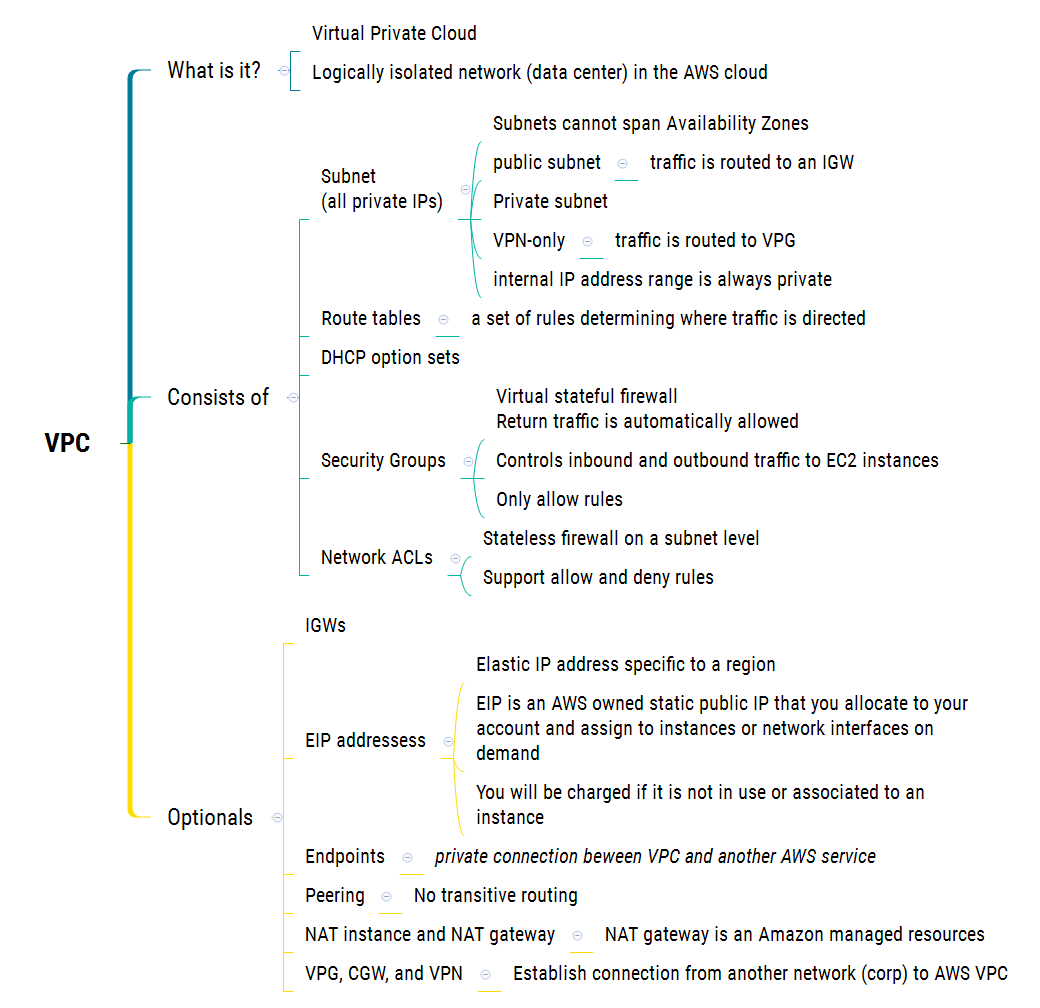

The VPC mind map template provides a structured overview of Amazon Virtual Private Cloud, covering 37 nodes across three main branches: 'What is it?', 'Consists of', and 'Optionals'. It defines a VPC as a logically isolated network (data center) in the AWS cloud and details core components like 'Subnet (all private IPs)', 'Route tables', 'Security Groups', and 'Network ACLs'. The template also explains optional features such as 'IGWs', 'EIP addresses', 'Endpoints', 'Peering', 'NAT instance and NAT gateway', and 'VPG, CGW, and VPN'. Ideal for AWS practitioners, this VPC cheat sheet serves as a quick reference for exam prep or architecture design.

Terms and Conditions

When to use this template

Cloud architects and AWS certification candidates

Studying for the AWS Solutions Architect certification exam

DevOps engineers and network administrators

Designing a new VPC architecture for a multi-tier application

Technical leads and cloud training teams

Onboarding new team members to AWS networking concepts

How to use this template

Step 1

Open the File in Xmind

Open the .xmind file in Xmind (desktop, web, or mobile).

Step 2

Review the Core Structure

Review the three main branches: 'What is it?', 'Consists of', and 'Optionals'.

Step 3

Read and Add Node Details

Click on any node to read its description or add your own notes.

Step 4

Customize Your VPC Configuration

Customize the template by adding new sub-nodes for your specific VPC configuration.

Step 5

Export and Share Your Map

Export the mind map as an image, PDF, or Markdown for sharing or printing.

Frequently asked questions

The template covers VPC fundamentals, components like subnets, route tables, security groups, network ACLs, and optional features such as IGWs, EIPs, endpoints, peering, NAT, and VPN connections.

Open the .xmind file in Xmind, review each branch to memorize key concepts like 'Security Groups' vs 'Network ACLs', and customize nodes with your own notes or exam tips.

Yes, the template is fully editable in Xmind. You can add, remove, or reorganize nodes, and export it as an image or PDF for printing.

Security Groups are a virtual stateful firewall for EC2 instances with only allow rules, while Network ACLs are a stateless firewall at the subnet level supporting both allow and deny rules.

Absolutely. Replace the example components with your actual VPC design, add specific CIDR blocks, and link to related services using Xmind's attachment feature.
