Cloud Architects and Network Engineers
Designing a multi-project cloud architecture for a large organization
Use cases
About

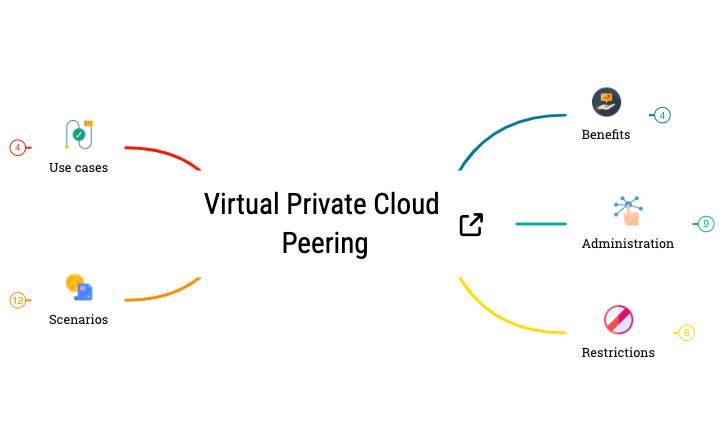

The Virtual Private Cloud Peering mind map template provides a technical framework for network architects and cloud engineers to manage private connectivity between VPC networks. This 43-node cheat sheet covers critical infrastructure components including 'Benefits', 'Administration', 'Restrictions', and 'Scenarios'. It specifically highlights how peering ensures all traffic stays on the network to achieve lower latency compared to VPN solutions. The template serves as a guide for implementing a 'SaaS ecosystem on the cloud' while detailing administrative rules such as how 'VPC Peers always exchange subnet routes'. By mapping out the limitations of transitive peering and CIDR range overlaps, this Xmind template helps teams avoid common configuration failures during cloud domain integration.
Terms and ConditionsWhen to use this template
IT Security Auditors and DevOps Teams
Auditing network connectivity and security protocols for a SaaS ecosystem
Infrastructure Leads and System Administrators
Planning a migration from VPN-based connectivity to private cloud peering
How to use this template
Step 1
Import the VPC template
Download and open the .xmind file in Xmind to view the full hierarchy of peering administration and restrictions.
Step 2
Map your CIDR ranges
Use the Restrictions branch to cross-check your existing subnets and ensure no 'Subnet CIDR range' overlaps exist before deployment.
Step 3
Configure firewall strategies
Customize the Administration nodes to document which specific firewall rules and routes need to be manually mirrored across your peered networks.
Frequently asked questions
Using this template helps visualize how VPC peering reduces latency and costs. It highlights that peering traffic remains within the private network, avoiding the egress charges typically associated with VPN connections in the same zone.
Yes, it specifies that 'Firewall rules are not exchanged' between peered networks. It emphasizes that administrators must manually configure firewall rules in each VPC to filter traffic, as peering only establishes the underlying route.
Key restrictions include the prohibition of overlapping 'Subnet CIDR' ranges and the fact that 'Transitive peering' is not supported. You must establish direct peering for every network connection desired.
Refer to the 'Scenarios' branch, which lists common failure points such as 'Overlapping subnets' during expansion and the default blocking of ingress traffic when firewall rules are not properly synchronized.
