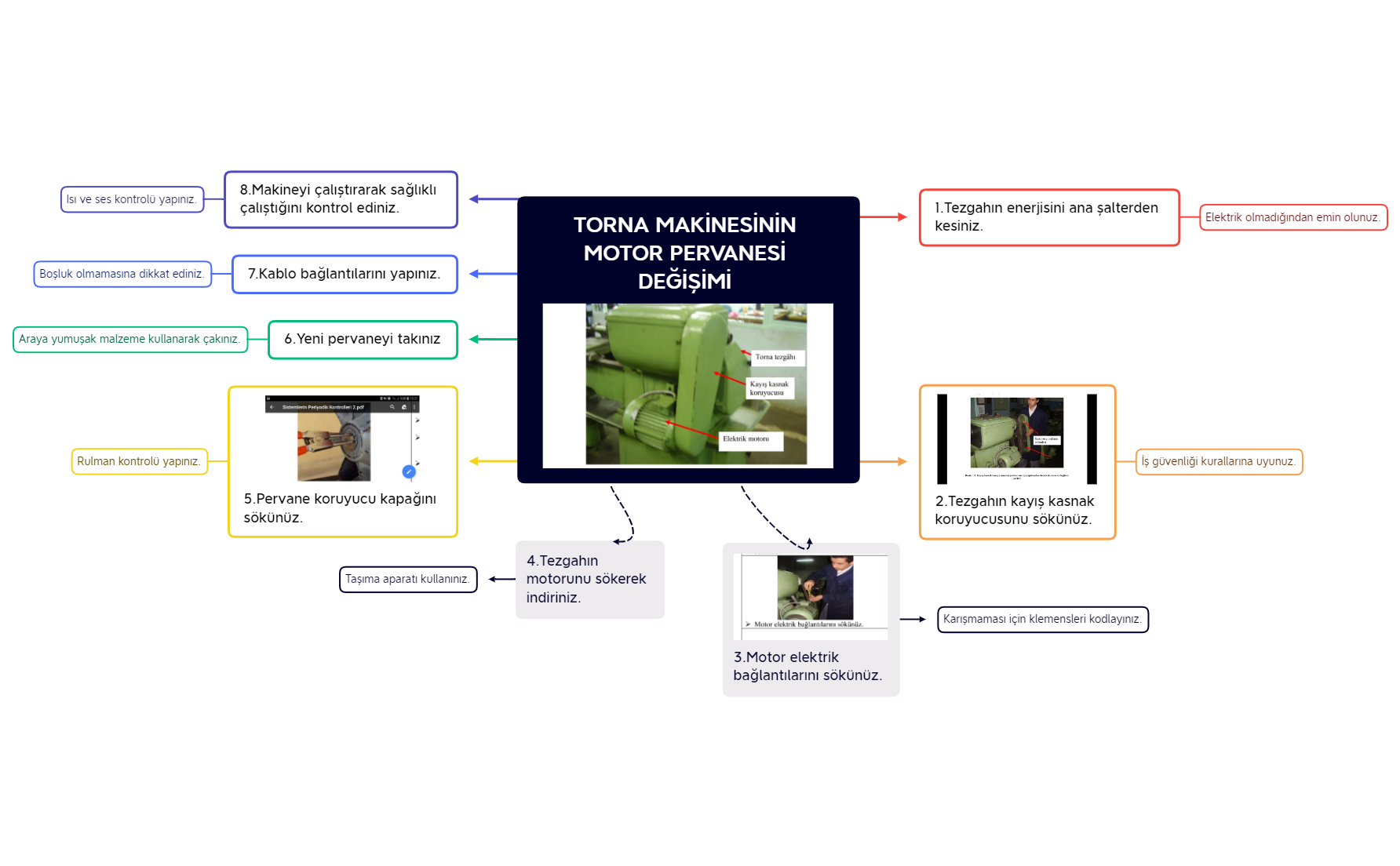

This Torna Makinesinin Motor Pervanesi Değişimi mind map template provides a step-by-step procedure for replacing the motor fan on a lathe machine. It covers 8 main steps from cutting power to final testing, including safety precautions and detailed sub-tasks such as 'Rulman kontrolü yapınız' (bearing inspection) and 'Karışmaması için klemensleri kodlayınız' (code terminals to avoid confusion). The template is structured as a sequential checklist, ideal for maintenance technicians and mechanical engineers. Use this Torna Makinesinin Motor Pervanesi Değişimi template as a cheat sheet for safe and efficient motor fan replacement.
