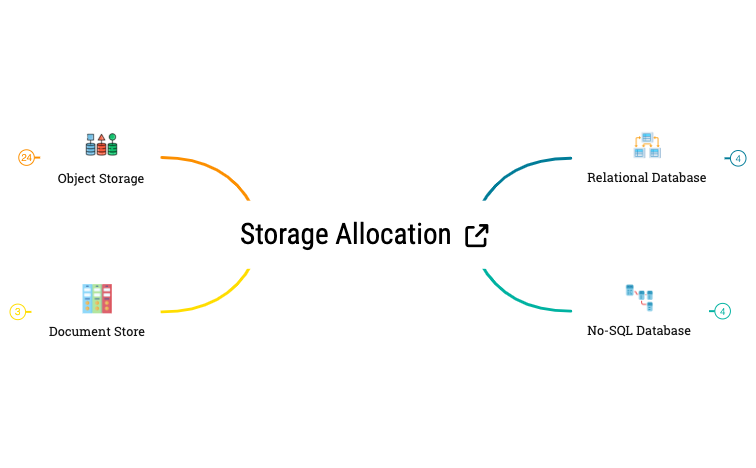

The Storage Allocation mind map template provides a technical architecture overview of modern data management strategies, covering four primary paradigms: Relational Database, No-SQL Database, Document Store, and Object Storage. This comprehensive cheat sheet serves as a decision-making framework for IT architects and developers, detailing the scalability and capacity limits of different systems. The template specifically highlights how Relational Database systems can scale vertically for capacity, while No-SQL Database options leverage SSD drives for faster performance and horizontal scaling. With 40 nodes of structured data, it maps out critical cost factors such as how 'Data storage price depends on storage class' and the specific 'Terabyte scale' limitations of document-based systems. This Xmind template is an essential resource for infrastructure planning and cloud resource optimization.
Terms and ConditionsWhen to use this template
Cloud Engineers and DevOps Specialists
Optimizing cloud storage costs by reclassifying data into archival tiers
Technical Leads and Engineering Managers
Onboarding junior developers to explain the differences between SQL and No-SQL scaling
How to use this template
Step 1
Import the template
Download and open the .xmind file in Xmind to view the full hierarchical breakdown of storage methods.
Step 2
Map your requirements
Compare your project's data volume against the 'Terabyte scale' or 'Petabyte capacity' nodes to identify the best fit.
Step 3
Customize storage classes
Edit the Object Storage branch to reflect your specific provider's pricing and storage class names for accurate planning.
Frequently asked questions
This template covers four major storage categories: Relational Databases, No-SQL Databases, Document Stores, and Object Storage. It provides a side-by-side comparison of their scaling capabilities, performance characteristics, and typical capacity limits.
The template includes a dedicated section on Object Storage classes, explaining that 'Object classes can co-exist in a bucket' and detailing how billing changes when a class is updated, helping you choose between Standard and Archival tiers.
Yes, it is ideal for cloud architects. It outlines specific infrastructure details like 'SSD drives for faster performance' and 'NoOps' regional management, which are critical for designing scalable cloud environments.
Absolutely. You can fully customize all 40 nodes, add your own specific cloud provider details, or expand the 'Petabyte capacity' branches to include specific vendor names like AWS, Azure, or Google Cloud.
