Cloud Architects and Systems Engineers
Designing a high-availability cloud architecture for a new enterprise application
Use cases
About

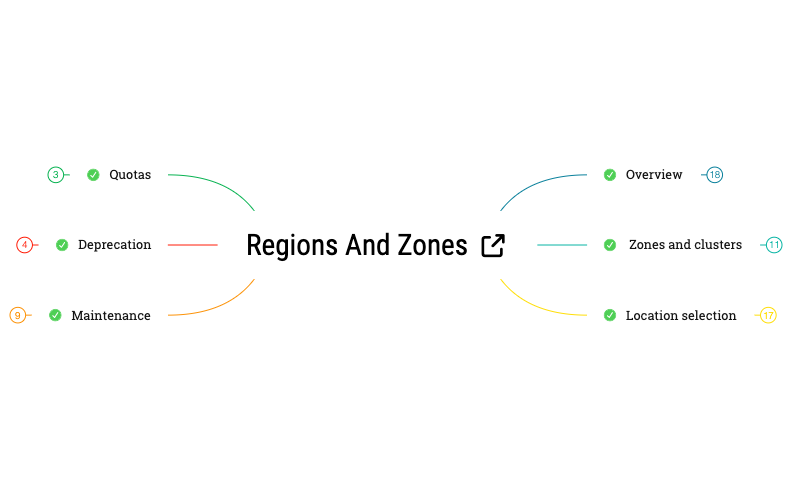

The Regions and zones mind map template provides a technical framework for cloud infrastructure planning, specifically tailored for architects managing Compute Engine resources. This 69-node guide details how resources are distributed across global locations to ensure high availability and fault tolerance. It covers the critical distinction between 'Zonal resources', such as virtual machine instances, and 'Regional resources' like static external IP addresses. The template explains the physical abstraction layer where a 'cluster' represents the distinct physical infrastructure in a data center, and how 'Location selection' impacts both latency and system redundancy. By mapping out the relationship between regions and zones, users can better understand failure domains and the cost implications of cross-region communication.
Terms and ConditionsWhen to use this template
DevOps Leads and Technical Trainers
Onboarding junior DevOps engineers to explain global infrastructure distribution
Infrastructure Managers and IT Operations
Planning resource allocation and checking service limits for regional deployments
How to use this template
Step 1
Import the template file
Open the .xmind file in Xmind desktop or the web app to view the full 69-node infrastructure hierarchy.
Step 2
Map your specific resources
Replace the generic 'Zonal resources' and 'Regional resources' nodes with your actual project assets and IP ranges.
Step 3
Analyze failure domains
Use the 'Location selection' branch to visualize and document your redundancy strategy across different zones and clusters.
Frequently asked questions
As outlined in the 'Overview' section, zonal resources like VM instances are restricted to a specific zone, while regional resources like static IPs can be utilized by any asset within that region. Understanding this distinction is vital for proper resource attachment and network configuration.
The template emphasizes 'Location selection' strategies, recommending redundancy across multiple zones and regions to provide isolation from physical infrastructure failures and ensure a high degree of failure independence for robust systems.
Yes, while the terminology (zones, clusters, regions) is closely aligned with Google Cloud's Compute Engine, the structural logic is applicable to AWS, Azure, or any distributed cloud architecture requiring a 'Location selection' cheat sheet.
Absolutely. You can customize all 69 nodes in Xmind to include your specific project's 'Quotas', maintenance schedules, or specific geographical regions relevant to your organization's deployment.
