Cloud Architects and Lead Developers
Designing the backend architecture for a new global mobile application requiring high availability
Use cases
About

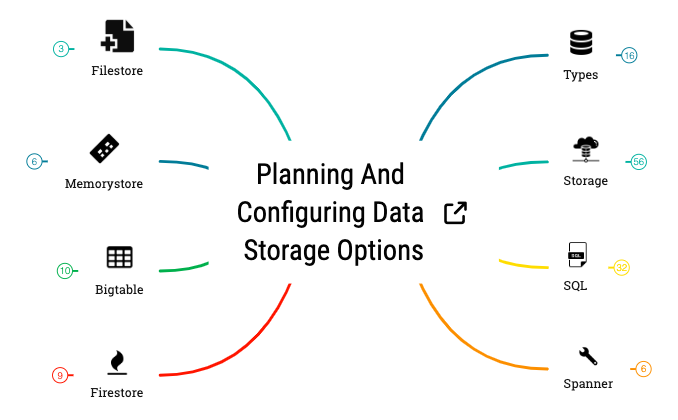

The Planning and Configuring Data Storage Options mind map is a technical architecture guide designed for cloud architects, DevOps engineers, and database administrators. This 147-node template provides a structured comparison of cloud-based storage solutions, covering seven distinct categories including Relational, Non-relational, and In-memory systems. It serves as a comprehensive 'Planning and Configuring Data Storage Options cheat sheet' for professionals migrating on-premise workloads to the cloud. The map details specific service implementations such as 'Cloud SQL', 'Cloud Spanner', and 'Cloud Bigtable', outlining their consistency models, scalability limits, and high-availability configurations. By mapping out the 'Storage Classes' and 'Managed services' available, users can make data-driven decisions regarding latency, durability, and cost-effectiveness for enterprise-grade infrastructure.
Terms and ConditionsWhen to use this template
Database Administrators and DevOps Engineers
Planning a 'Lift and Shift' migration of on-premise MySQL databases to a managed cloud environment
IT Students and Certification Candidates
Studying for cloud provider certification exams focusing on data storage and database services
How to use this template
Step 1
Select your storage type
Open the .xmind file and navigate to the 'Types' branch to identify whether your data is relational, unstructured, or in-memory.
Step 2
Evaluate scaling and availability
Review the 'Scaling' and 'Failover' sub-nodes under your chosen service to ensure it meets your application's performance and uptime requirements.
Step 3
Configure storage classes
Use the 'Storage Classes' section to determine the most cost-effective tier, such as Standard, Nearline, or Archival, based on your data access frequency.
Frequently asked questions
This template covers a wide spectrum of storage architectures, including Relational (Cloud SQL, Spanner), Non-relational (Firestore, Bigtable), Data Warehousing (BigQuery), Unstructured data (Cloud Storage), and In-memory caching (Memorystore).
It specifically addresses 'Lift and shift' scenarios within the SQL branch, highlighting how managed services handle OS updates, backups, and cross-regional replication to simplify the transition from on-premise to cloud.
Yes. The template contrasts 'Cloud SQL' (traditional relational, vertical scaling, 30TB cap) with 'Spanner' (horizontally scalable, global footprint, near-infinite capacity), making it ideal for architectural trade-off analysis.
Absolutely. You can expand the 147 nodes to include your specific project requirements, add pricing data to the 'Storage Classes' branch, or link technical documentation to each service node.
