Cloud Architects and Security Engineers
Designing a new GKE cluster architecture and security protocol
Use cases
About

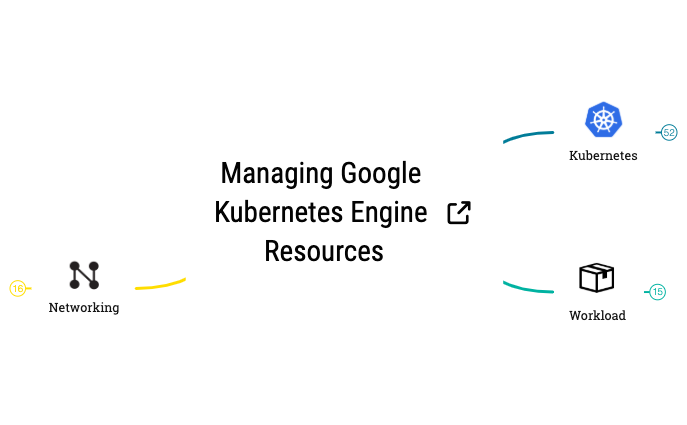

The Managing Google Kubernetes Engine Resources mind map template provides a technical architecture overview for DevOps engineers and cloud architects managing GKE environments. This 87-node cheat sheet covers the foundational hierarchy of Google Cloud Platform's container orchestration, starting from the Cluster Master down to individual Pods. It details critical infrastructure components such as the 'Highly available etcd cluster' and 'Kubernetes Control Plane', while offering actionable advice on 'Container Image' optimization using Alpine Linux and specific pull policies. By mapping out the relationship between Compute Engine VM instances and Node pools, this template serves as a visual guide for configuring 'CA and TLS certificate generation' and implementing RBAC authentication within a production-grade Kubernetes ecosystem.
Terms and ConditionsWhen to use this template
DevOps Leads and SREs
Onboarding new DevOps team members to Google Cloud container workflows
System Administrators and Kubernetes Operators
Troubleshooting networking and pod deployment issues in a production environment
How to use this template
Step 1
Import the GKE template
Open the .xmind file in Xmind to view the full 87-node hierarchy of Kubernetes and Workload management.
Step 2
Customize infrastructure nodes
Modify the 'Features' and 'Node image' branches to match your specific cluster configuration, such as Ubuntu or Container-Optimized OS.
Step 3
Export as technical documentation
Use the Export feature to save the map as a PDF or PNG to include in your team's internal cloud architecture documentation.
Frequently asked questions
According to the 'Administration' branch, gcloud is used to interact with GCP-level resources like clusters, nodes, and disks. In contrast, kubectl is specifically for managing applications on those nodes, such as deploying, scaling, and updating individual Pods.
The template recommends using 'Alpine Linux' for slim images, tagging deployments with specific version numbers instead of 'latest', and setting the image pull policy to 'IfNotPresent' to reduce unnecessary network traffic and deployment time.
It covers the 'Highly available etcd cluster', TLS client bootstrap, RBAC authentication, and the provisioning of 'Compute engine VM instances' which serve as the worker nodes for the cluster.
Yes, the 'Cloud Build' and 'Container Registry' nodes outline how to create Docker images from source code and push them to a private repository, supporting a full CI/CD model for GKE, Compute Engine, or AppEngine.
