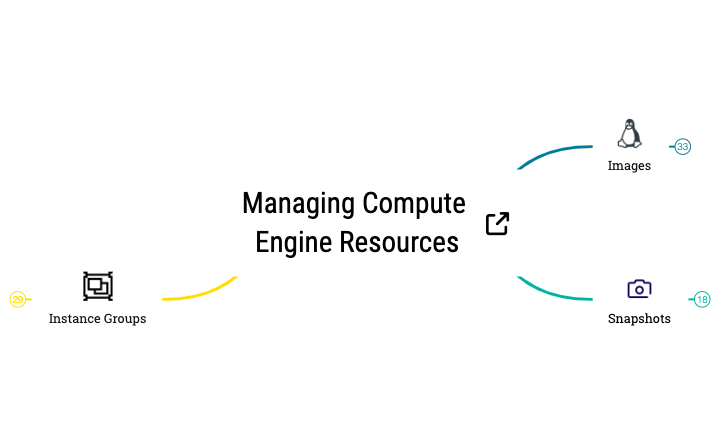

The Managing Compute Engine Resources mind map template provides a structured technical overview of Google Cloud Platform (GCP) infrastructure management, covering 84 distinct nodes of cloud architecture. This Managing Compute Engine Resources cheat sheet is designed for cloud architects and DevOps engineers to visualize the lifecycle of Images, Snapshots, and Instance Groups. The guide details critical operational workflows, such as the incremental backup logic where the 'First snapshot creates a full disk copy' while subsequent ones capture only differences. It also maps out complex networking requirements, specifically the firewall ingress rules for 'Healthcheck' traffic from IP ranges like 35.191.0.0/16. By using this Xmind template, teams can standardize their approach to 'Managed instance groups' and ensure high availability through automated health probes and backend service configurations.
Terms and ConditionsWhen to use this template
IT Students and Certification Candidates
Preparing for the Google Associate Cloud Engineer or Professional Cloud Architect certification exams
DevOps Engineers and Infrastructure Leads
Configuring auto-scaling backend services and load balancers for a production environment
How to use this template
Step 1
Import the cloud template
Download and open the .xmind file in Xmind to view the full hierarchy of Compute Engine resource management.
Step 2
Customize technical specifications
Replace the generic IP ranges or 'Instance Groups' configurations with your specific project requirements and naming conventions.
Step 3
Export for team documentation
Use the Export feature to save the mind map as a PDF or PNG to include in your project's technical architecture documentation.
Frequently asked questions
According to the 'Images' branch, public images are maintained by Google or vendors, while custom images are created by users from boot disks. Custom images are only available within a customer's project unless shared via the 'Compute Engine Image User' role or exported to Cloud Storage.
The 'Operation' node explains that the first snapshot is a full disk copy. Subsequent snapshots are incremental, capturing only the data changed since the last backup. Restoring a disk involves combining these previous snapshots to reconstruct the entire volume.
Use 'Managed instance groups' when you need to manage identical machine types for scaling and autohealing. 'Unmanaged instance groups' are reserved for scenarios requiring dissimilar machines within the same group, though they lack the automated management features of their managed counterparts.
The template specifies that for 'Healthcheck' traffic to reach instances, firewall rules must allow ingress from specific IP ranges: 35.191.0.0/16 and 130.211.0.0/22 for global services, and additional ranges for regional configurations.
