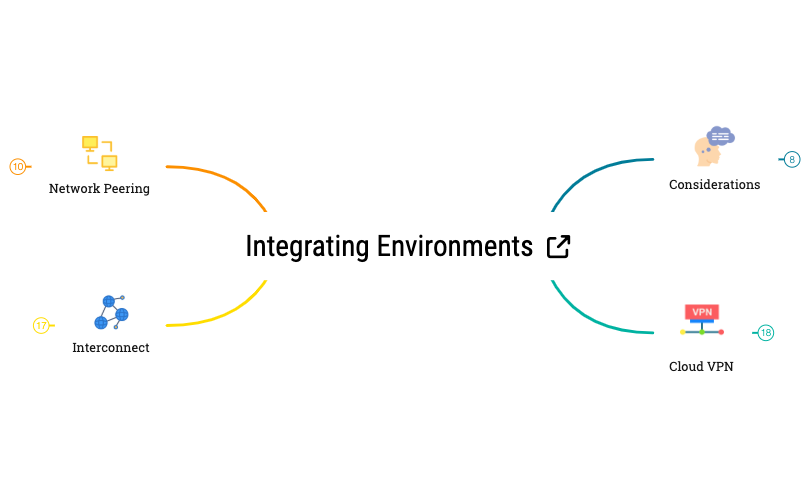

The Integrating Environments mind map template provides a technical framework for architects and network engineers to evaluate hybrid cloud connectivity. This 58-node cheat sheet covers four primary integration methods: Cloud VPN, Interconnect, Network Peering, and general Considerations. It serves as a decision-making guide for choosing between IPsec VPN vs Interconnect based on factors like bandwidth, cost, and security. The template details specific technical requirements such as Cloud Router implementation, BGP route exchange, and VLAN attachment configurations. By mapping out the differences between dedicated and partner interconnects, this Xmind template helps teams design resilient failover and disaster recovery strategies for cross-organizational access.
Terms and ConditionsWhen to use this template
IT Infrastructure Managers
Conducting a cost-benefit analysis for upgrading from a standard VPN to a dedicated Interconnect
Systems Administrators and DevOps Teams
Planning a disaster recovery strategy that requires redundant paths and failover routing
How to use this template
Step 1
Open the network template
Download and open the .xmind file to view the four main branches of network integration strategies.
Step 2
Compare connectivity requirements
Review the 'Considerations' branch to weigh factors like 'IPsec VPN vs Interconnect' against your current bandwidth needs.
Step 3
Document your configuration
Replace the generic technical specs with your specific 'VLAN attachment' details and 'Cloud Router' settings to create a custom network map.
Frequently asked questions
According to the template, Cloud VPN uses encrypted tunnels over the public internet and is ideal for low-volume data, while Interconnect provides a direct physical, private connection with fewer hops and higher egress volume at a reduced cost.
The Cloud Router is a central component used for exchanging BGP routes between networks and managing both static and dynamic routes for Cloud VPN and Interconnect setups.
Network Peering is recommended when you need to publicly peer to a cloud network to reduce egress pricing or achieve better VPN tunnel performance without requiring a full SLA-backed private connection.
Yes, all 58 nodes, including specific technical specs like the 1.5 Gbps tunnel limit or 99.9% SLA, are fully editable in Xmind to match your specific cloud provider's terms.
