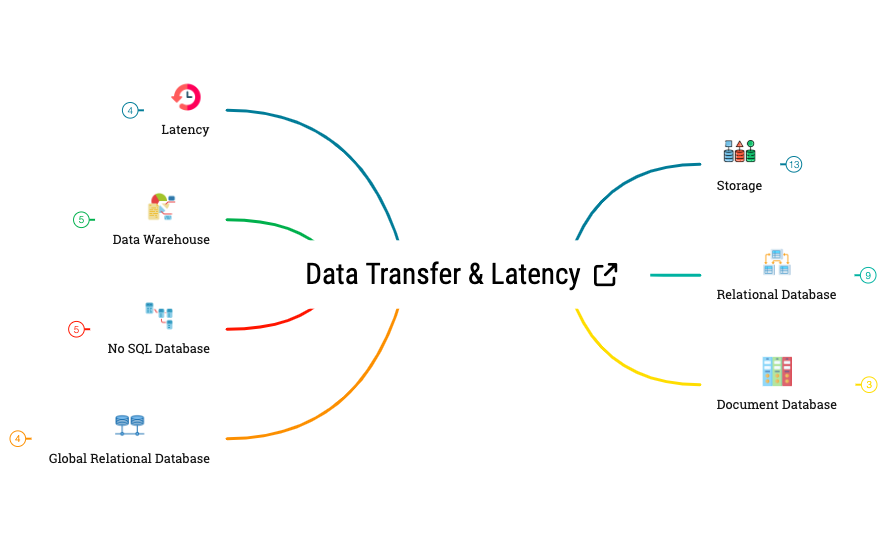

The Data Transfer and Latency mind map template provides a technical architecture overview for cloud engineers and database administrators, covering 51 distinct nodes across 7 major infrastructure categories. This Data Transfer and Latency cheat sheet serves as a strategic guide for optimizing system performance by analyzing the trade-offs between Storage, Relational Database, and No SQL Database configurations. It specifically details how Multiregional storage maximizes availability and provides disaster recovery, while explaining the mechanics of Replication lag in primary-to-failover instances. The template acts as a Data Transfer and Latency template for teams designing high-availability systems, offering concrete facts on how write operations propagate across data centers and the impact of geographic distance on user-experienced latency.
Terms and ConditionsWhen to use this template
Database Administrators (DBAs) and Backend Developers
Evaluating the trade-offs between different database types for a new enterprise application.
IT Students and Certification Candidates
Preparing for a technical certification exam covering cloud storage and data replication concepts.
How to use this template
Step 1
Import the template file
Download and open the .xmind file in Xmind desktop or the web app to view the full 51-node structure.
Step 2
Map your infrastructure
Replace the generic Storage and Relational Database nodes with your specific service names like AWS S3 or Google Cloud SQL.
Step 3
Analyze latency bottlenecks
Use the Latency branch to document your specific read/write speeds and identify geographic regions that require additional read replicas.
Frequently asked questions
This template includes a comprehensive breakdown of cloud storage types, database replication strategies (Relational, Document, and NoSQL), and a dedicated analysis of latency factors. It covers 51 nodes of technical data, including failover mechanisms and global data distribution.
Under the Relational Database branch, the template defines Replication lag as the time a failover instance takes to catch up with primary updates. It notes that while lag doesn't cause data loss, it can be minimized by increasing failover instance performance.
Use the Multiregional node when designing for content delivery with the lowest latency or when your project requires maximum availability and disaster recovery across an entire region.
Yes, this template is fully editable. You can customize the 51 nodes to reflect your specific cloud provider's terminology, adjust the latency propagation rules, or add new database types like Graph or Vector databases.
