Accident investigators and forensic engineers
Investigating a specific urban traffic accident where braking failure is suspected
Use cases
About

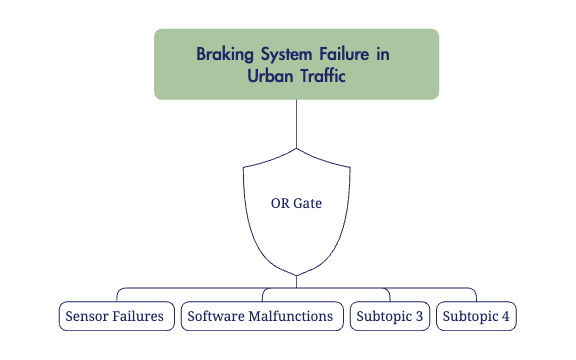

This braking system failure mind map template, designed for automotive engineers and safety analysts, breaks down the root causes of braking system failures in urban traffic across 3 sheets and 24 nodes. It systematically covers key failure categories including 'Sensor Failures', 'Software Malfunctions', 'Mechanical Failures', and 'Communication Failures', with detailed sub-branches like 'Hardware damage' and 'Power Issues'. The template uses an OR Gate logic structure to map causal relationships, making it a practical cheat sheet for fault tree analysis and incident investigation in urban driving scenarios.
Terms and ConditionsWhen to use this template
Automotive system engineers and safety analysts
Designing a safety-critical braking system for autonomous or semi-autonomous vehicles
Quality assurance teams and reliability engineers
Conducting a Failure Mode and Effects Analysis (FMEA) on braking components
How to use this template
Step 1
Launch and Review Failure Categories
Open the template in Xmind to explore the high-level overview of braking failure categories organized under the OR Gate structure.
Step 2
Explore Detailed Sub-Causes and Nodes
Navigate through the multiple sheets to examine specific sub-branches such as hardware damage, power issues, and software malfunctions.
Step 3
Customize and Model Causal Relationships
Rename nodes to match your specific incident data and use the logic structure to identify critical failure paths for your analysis.
Frequently asked questions
The template includes 3 sheets covering braking system failures in urban traffic, with 24 nodes organized under an OR Gate structure. Key categories include Sensor Failures, Software Malfunctions, Mechanical Failures, and Communication Failures, with sub-branches like Hardware damage and Power Issues.
Open the .xmind file in Xmind, then review each sheet to trace failure paths. The OR Gate logic helps identify which combination of causes (e.g., Sensor Failures OR Software Malfunctions) leads to a braking failure. Customize nodes with your own data for specific incidents.
The template is available on Xmind's marketplace and is fully editable. You can add, remove, or modify nodes to fit your analysis needs. It works in both Xmind desktop and web versions.
Use the template as a starting point for root cause analysis. Start with Sheet 1 for a high-level overview, then drill into Sheet 2 or 3 for detailed causes like Hardware damage or Communication Failures. Map your incident's specific factors onto the structure.
Yes, you can edit the OR Gate labels and add new gates (AND, OR, etc.) using Xmind's relationship and summary features. The template is designed to be flexible for various analysis frameworks.
