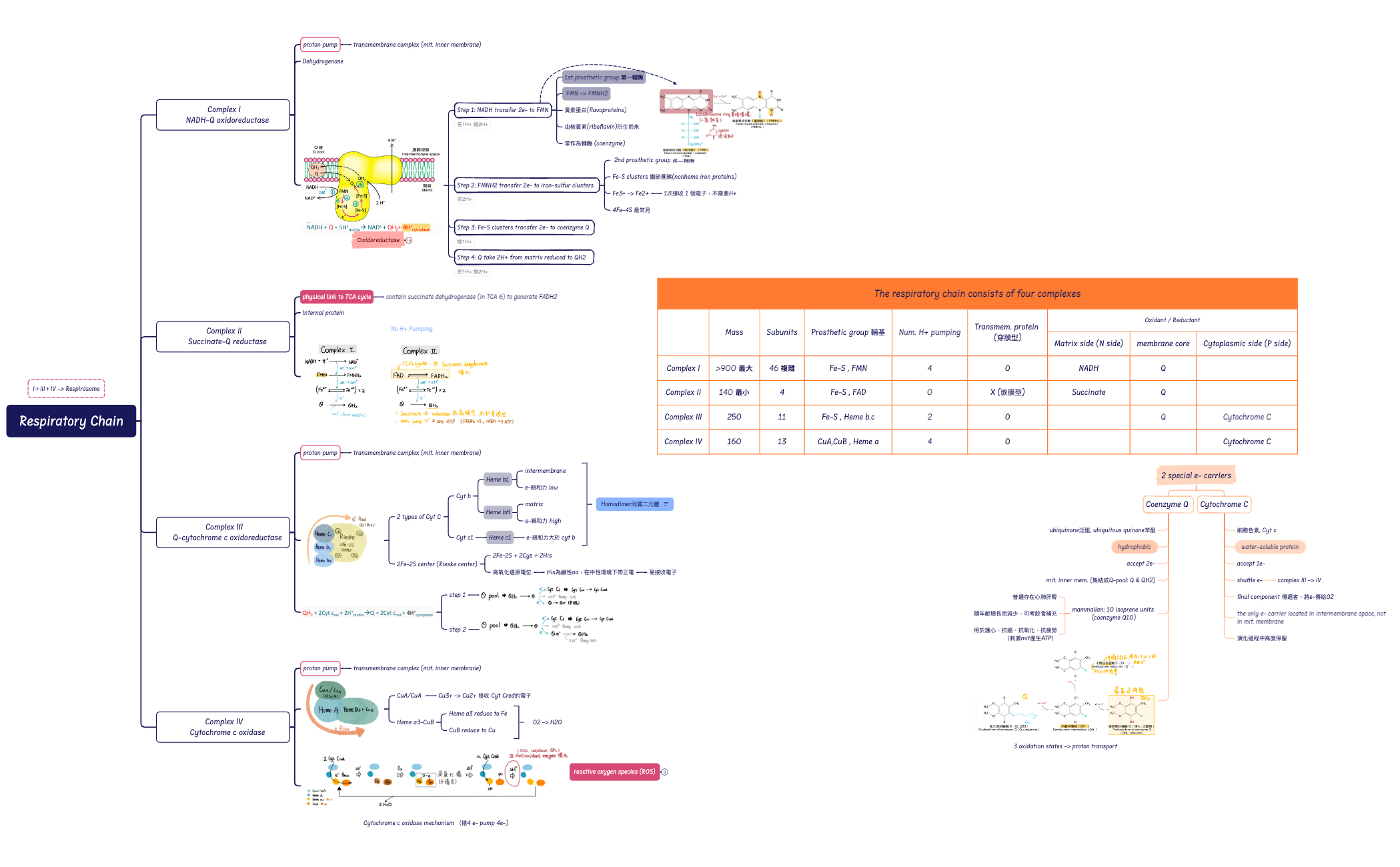

The Respiratory Chain mind map template provides a detailed exploration of the four mitochondrial complexes (Complex I NADH-Q oxidoreductase, Complex II Succinate-Q reductase, Complex III Q-cytochrome c oxidoreductase, and Complex IV Cytochrome c oxidase) and their roles in cellular respiration. With 151 nodes across one sheet, it covers proton pumps, electron carriers like Coenzyme Q and Cytochrome C, the respirasome (I+III+IV), oxidoreductase types, and reactive oxygen species (ROS). This respiratory chain cheat sheet is ideal for biochemistry students and researchers seeking a structured overview of oxidative phosphorylation. Key nodes include 'Complex I >900 最大' and '2 special e- carriers', which detail the size and function of each complex. The template also explains the physical link between Complex II and the TCA cycle via succinate dehydrogenase.

biochemistrycellular respirationmetabolism

Terms and Conditions

When to use this template

Undergraduate and graduate students in biochemistry or molecular biology

Studying for a biochemistry exam on oxidative phosphorylation

Professors and educators teaching cellular respiration

Preparing a lecture or presentation on mitochondrial electron transport chain

Researchers in mitochondrial biology or oxidative stress

Reviewing the role of reactive oxygen species (ROS) in metabolic diseases

How to use this template

Step 1

Launch and Explore Core Complexes

Open the template in Xmind to navigate the detailed branches covering mitochondrial complexes I through IV and electron carriers.

Step 2

Review and Customize Detailed Data

Examine specific node descriptions for molecular weights and enzyme functions while adding your own research notes or visual styles.

Step 3

Export for Study and Presentation

Save your finalized respiratory chain map as a high-quality image or PDF to use for biochemistry review or teaching materials.

Frequently asked questions

The template covers all four mitochondrial complexes (I–IV), electron carriers (Coenzyme Q and Cytochrome C), the respirasome, oxidoreductase enzymes, and reactive oxygen species (ROS). It includes 151 nodes with detailed annotations on structure and function.
