Planning a large-scale data center evacuation to Google Cloud Platform
Use cases
About

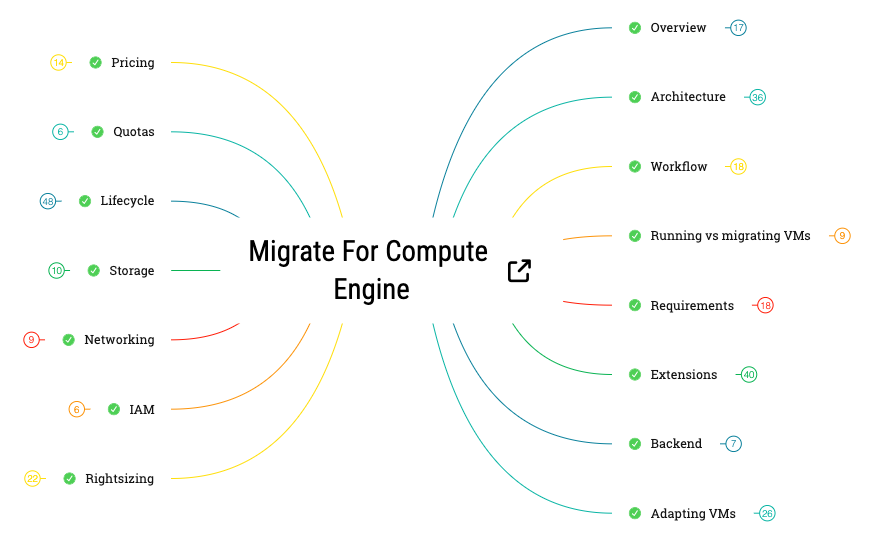

The Migrate for Compute Engine mind map template provides a technical blueprint for migrating virtual machines (VMs) from on-premises environments, AWS, or Azure to Google Cloud. This 302-node cheat sheet covers the entire migration lifecycle, from initial architecture setup to final pricing models. It specifically details how Migrate for Compute Engine decouples VMs from storage to enable 'Boot over WAN', allowing cloud native boots in minutes regardless of image size. The template serves as a comprehensive guide for IT architects and cloud engineers, mapping out critical components like the 'Cloud Extensions' for storage handling and the 'Migrate for Compute Engine Manager' for orchestration. By following this structured workflow, teams can leverage intelligent streaming and multi-tier caching to reduce migration bandwidth by up to 75% while maintaining a 30-second Recovery Point Objective (RPO).
Terms and ConditionsWhen to use this template
DevOps Engineers and Site Reliability Engineers (SREs)
Designing a disaster recovery and resiliency strategy with low RPO requirements
Security Consultants and Network Administrators
Conducting a technical audit of migration networking and IAM requirements
How to use this template
Step 1
Import the migration framework
Open the .xmind file in Xmind to access the full 302-node hierarchy of the migration process.
Step 2
Map your local environment
Customize the 'On Premises' and 'Networking' branches to match your specific VMware or cloud source configuration.
Step 3
Track migration milestones
Use the 'Workflow' and 'Lifecycle' nodes as a checklist to monitor progress from initial deployment to final VM detachment.
Frequently asked questions
This template provides a structured technical reference for complex cloud migrations. It helps teams visualize the relationship between on-premises backends and Google Cloud components, ensuring that critical steps like 'Adapting VMs' and 'IAM' configuration are not overlooked during the transition.
The template highlights 'Secure by design' protocols, including TLS and AES-128 encryption for data in transit, and AES-256 for data at rest. It specifically references how the 'Migrate for Compute Engine Backend' establishes secure paths to the cloud.
Yes, the 'Architecture' branch explicitly covers migration paths for physical servers, Amazon EC2, and Azure VMs to Compute Engine, making it a versatile tool for multi-cloud strategies.
The workflow includes 'Boot over WAN' procedures, 'Intelligent streaming' setups, and 'Multi-tier caching' configurations to ensure applications run efficiently in the cloud even before the full data migration is complete.
