Cloud Architects and Network Engineers
Designing a high-availability cloud network architecture that requires 100% SLA uptime
Use cases
About

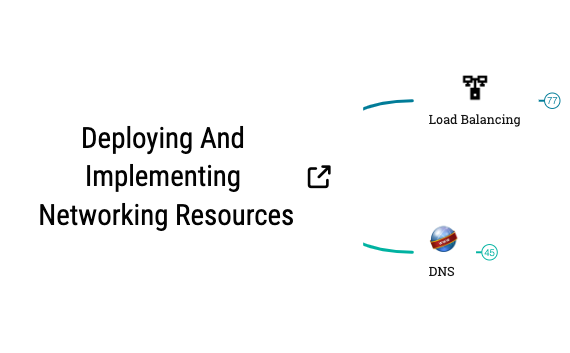

The Deploying and Implementing Network Resources mind map template provides a technical architecture overview for IT professionals managing cloud infrastructure. This 125-node cheat sheet focuses on the critical pillars of modern networking: Load Balancing and DNS. It details the specific configurations for Layer 7 HTTP(S) balancing, including support for QUIC protocol and websockets, alongside Layer 4 Network load balancing for TCP/UDP traffic. The template serves as a comprehensive guide for engineers to distinguish between Global and Regional scopes, ensuring high availability and security through features like SSL Proxy and DNSSEC. By mapping out the relationship between Managed Zones and authoritative DNS record hosts, this Xmind template helps teams implement robust, scalable network environments with a focus on 100% SLA targets.
Terms and ConditionsWhen to use this template
Students and IT Certification Candidates
Preparing for a professional IT certification exam covering cloud networking and security protocols
Security Analysts and Systems Administrators
Auditing existing network infrastructure to ensure proper SSL termination and DNSSEC protection
How to use this template
Step 1
Import the network template
Open the .xmind file in Xmind to view the full hierarchy of load balancing and DNS configurations.
Step 2
Customize your infrastructure specs
Modify the specific port numbers and forwarding rules under the HTTP(S) and TCP Proxy branches to match your project.
Step 3
Export for team documentation
Use the Export feature to save your customized network map as a PDF or PNG for inclusion in technical documentation.
Frequently asked questions
This template covers a wide range of load balancing types including Global, Regional, External, and Internal. It specifically details HTTP(S) for Layer 7 traffic, SSL and TCP Proxies for non-HTTP traffic, and Network load balancing for Layer 4 TCP/UDP traffic, providing a complete overview of traffic management strategies.
The template highlights DNSSEC as a security layer that authenticates responses to domain name lookups. It emphasizes that while it provides strong authentication to prevent spoofing and cache poisoning, it does not provide encryption, and requires support from both the registrar and registry for the specific TLD.
Yes, the template is ideal for multi-tier planning. It specifically includes an 'Internal' load balancing section which describes how to use private load balancers within the same VPC to manage traffic between different application tiers using internal IP addresses.
The template focuses on essential records for domain management, specifically the 'A record' for mapping host names to IPv4 addresses and the 'Name server (NS) record' for delegating DNS queries to authoritative servers within Managed Zones.
