How do I use this Citric Acid Cycle template for studying?

Open the .xmind file in Xmind, then follow the flow from Glycolysis through Pyruvate Dehydrogenase to the cycle. Customize node colors or add notes to memorize enzyme names and energy yields. Use it as a visual study aid for exams.

Is this Citric Acid Cycle cheat sheet editable and printable?

Yes, the template is fully editable in Xmind (desktop or web). You can add, remove, or reorganize nodes. Export as PDF or image for printing as a study reference.

What is the role of Succinyl CoA Synthetase in the cycle?

Succinyl CoA Synthetase converts Succinyl CoA to Succinate, producing GTP (or ATP) from GDP and Pi. This is the only substrate-level phosphorylation step in the Citric Acid Cycle.

How does the template explain the regulation of the Krebs cycle?

The template includes regulatory nodes like 'Calcium', 'ADP', and 'ATP', showing how enzyme activities (e.g., Isocitrate Dehydrogenase) are modulated by energy status and calcium signaling.

Citric Acid Cycle

Armand Theron

Loading preview...

Use cases

Science notes

About

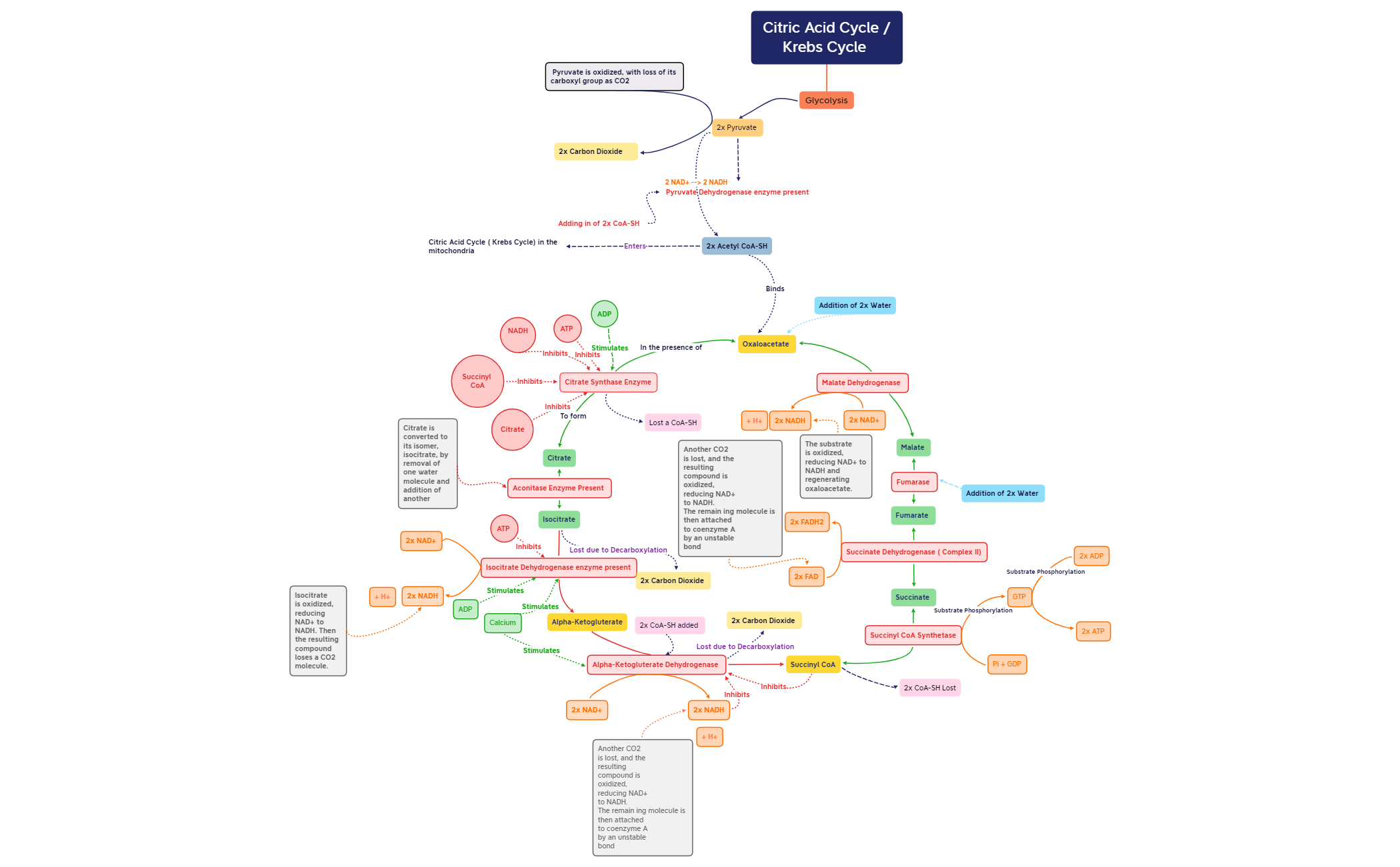

The Citric Acid Cycle mind map template breaks down the Krebs cycle into 60 nodes covering every enzymatic step, intermediate, and energy yield. It includes key components such as 'Citrate Synthase Enzyme', 'Isocitrate Dehydrogenase enzyme present', and 'Succinate Dehydrogenase (Complex II)', along with the net production of 2x ATP, 2x FADH2, and 6x NADH per glucose. This Citric Acid Cycle template is ideal for students and educators studying cellular respiration, providing a structured overview of the cycle's eight main reactions, regulatory inputs like 'Calcium' and 'ADP', and the connection to glycolysis via '2x Pyruvate' and 'Pyruvate Dehydrogenase enzyme present'. Organized as a single-sheet mind map, it visually maps the flow from 'Oxaloacetate' through 'Citrate', 'Alpha-Ketogluterate', 'Succinyl CoA', 'Succinate', 'Fumarate', 'Malate', and back to oxaloacetate, with detailed annotations on cofactor usage and CO2 release.

biochemistrymetabolismcellular respiration

Terms and Conditions

When to use this template

Undergraduate and graduate students in biology or biochemistry.

Preparing for a biochemistry exam covering cellular respiration and the Krebs cycle.

High school or college educators in life sciences.

Teaching a lesson on metabolic pathways and need a visual aid to explain each step.

Researchers and lab technicians studying metabolic disorders.

Reviewing the Citric Acid Cycle for a research project on mitochondrial metabolism.

How to use this template

Step 1

Launch and Explore the Metabolic Pathway

Open the template in Xmind and navigate from the initial pyruvate entry point through the eight main enzymatic reactions.

Step 2

Review and Annotate Cycle Components

Examine specific nodes like Citrate Synthase or energy yields and add your own study notes to the existing structural framework.

Step 3

Customize and Export Your Map

Personalize the visual design with colors or additional nodes before exporting the final diagram as a PDF or image for study.

Frequently asked questions

The template includes 60 nodes covering all eight enzymatic steps, intermediates like Citrate, Isocitrate, Alpha-Ketogluterate, Succinyl CoA, Succinate, Fumarate, Malate, and Oxaloacetate, plus cofactors (NAD+, FAD, CoA-SH, GDP, Pi) and energy products (ATP, GTP, NADH, FADH2).
